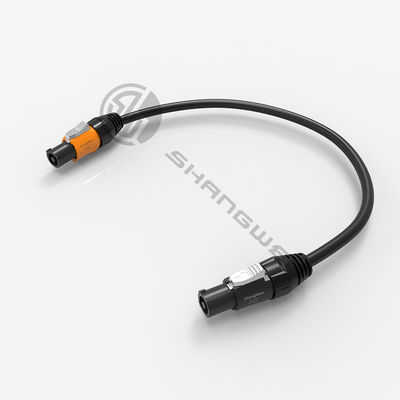

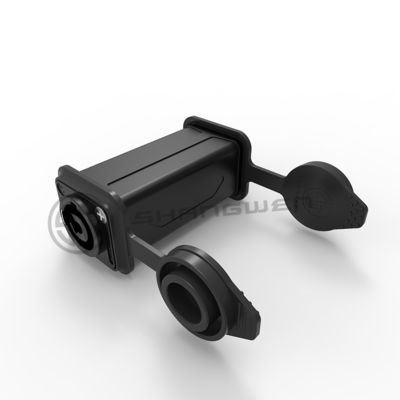

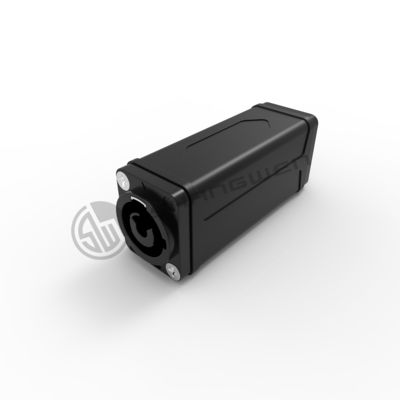

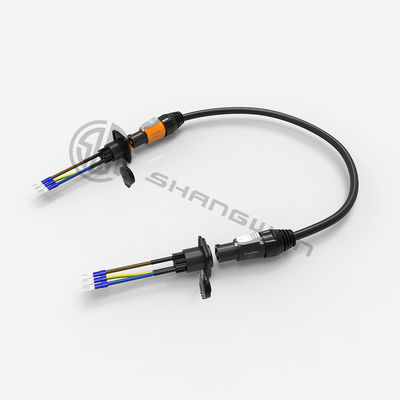

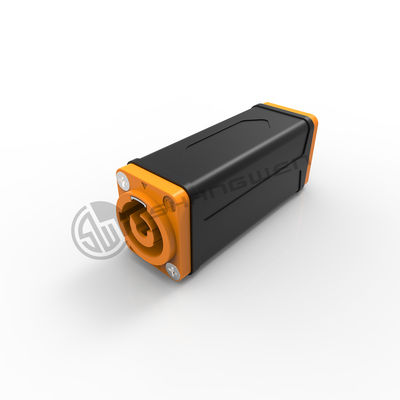

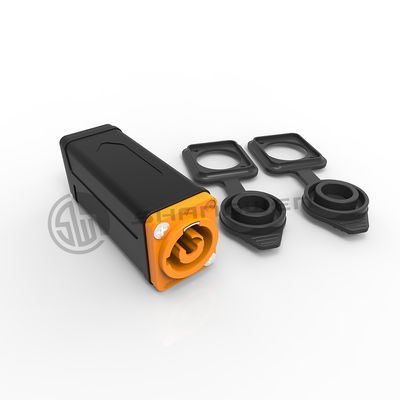

Outdoor Powercon Connector Coupler Male Adapter Power Connector for Linking Cables

สถานที่กำเนิด กวางตุ้งจีน
ชื่อแบรนด์ SHANGWEN
หมายเลขรุ่น ขั้วต่อสายไฟภายนอก
จำนวนสั่งซื้อขั้นต่ำ 5 ชิ้น
ราคา $3.60 / piece

ติดต่อฉันเพื่อตัวอย่างฟรีและคูปอง

WhatsApp:0086 18588475571

วีแชท: 0086 18588475571

สกายเป้: sales10@aixton.com

หากคุณมีปัญหา เราให้ความช่วยเหลือออนไลน์ตลอด 24 ชั่วโมง

x
รายละเอียดสินค้า
เพศ ชาย พิมพ์ อะแดปเตอร์
อิเล็กทรอนิกส์อุตสาหกรรม เครื่องประดับ
เน้น

Outdoor Powercon Coupler

,

Outdoor Powercon Male Connector

ฝากข้อความ
รายละเอียดสินค้า
Products Description
powerCON – Locking 3 Pole Power Connectors
Outdoor Powercon Connector Coupler Male Adapter Power Connector for Linking Cables 0
Outdoor power connector
Lockable 3 pole single phase equipment (AC) connector
High current capacity, rated at 20 A / 250 V ac
Colour coded for easy identification, powerCON offers power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
Fast and easy locking system Extremely robust and reliable Excellent cable retention UL, cUL recognized components (file no. E 135070) VDE certified (Reg. No. 6360) New latch design for easier handling and secure locking Coupler for linking cables (couples NAC3FCA to NAC3FCB)
Outdoor Powercon Connector Coupler Male Adapter Power Connector for Linking Cables 2
Outdoor Powercon Connector Coupler Male Adapter Power Connector for Linking Cables 4
Outdoor Powercon Connector Coupler Male Adapter Power Connector for Linking Cables 6
Outdoor Powercon Connector Coupler Male Adapter Power Connector for Linking Cables 8
Outdoor Powercon Connector Coupler Male Adapter Power Connector for Linking Cables 10
Outdoor Powercon Connector Coupler Male Adapter Power Connector for Linking Cables 12
Outdoor Powercon Connector Coupler Male Adapter Power Connector for Linking Cables 14
1.Product parameters
Product
NAC3MM-1
Connection Type
Adapter
Gender
Male
2.Electrical parameters
Contact resistance
≤ 3 mΩ
Dielectric strength
4 kVdc
Insulation resistance
> 0.1 GΩ (IEC 68-2-30)
Rated current per contact
20 A rms
Rated voltage
250 V ac
3.Mechanical parameters
Service life
>1000 mating cycles
Locking device
Quick lock
4.Material and environmental parameters
Contact plating
2 µm Ag
Lock material
Steel Ck67
Shell
Polyamide(PA 6.6 30 % GR)
Contact
Bronze (CuNi1Si0.2)
Flame-retardant grade
UL 94 V-0
Protection class
IP 20(After connecting)
Safety requirements
EN/IEC 61984
Solderability
Complies with IEC 68-2-20
Temperature range
-30℃to +80℃
5.Size reference (unit /mm)
Outdoor Powercon Connector Coupler Male Adapter Power Connector for Linking Cables 16
6.Assembly reference
Outdoor Powercon Connector Coupler Male Adapter Power Connector for Linking Cables 18
Outdoor Powercon Connector Coupler Male Adapter Power Connector for Linking Cables 20
Outdoor Powercon Connector Coupler Male Adapter Power Connector for Linking Cables 22
Outdoor Powercon Connector Coupler Male Adapter Power Connector for Linking Cables 24
Application area
Outdoor Powercon Connector Coupler Male Adapter Power Connector for Linking Cables 26
Company Information
Outdoor Powercon Connector Coupler Male Adapter Power Connector for Linking Cables 28
Patent & Certification
Outdoor Powercon Connector Coupler Male Adapter Power Connector for Linking Cables 30
Exhibition activities
Outdoor Powercon Connector Coupler Male Adapter Power Connector for Linking Cables 32
Packaging reference
Outdoor Powercon Connector Coupler Male Adapter Power Connector for Linking Cables 34
Payment and logistics
Outdoor Powercon Connector Coupler Male Adapter Power Connector for Linking Cables 36
FAQ
Outdoor Powercon Connector Coupler Male Adapter Power Connector for Linking Cables 38
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
