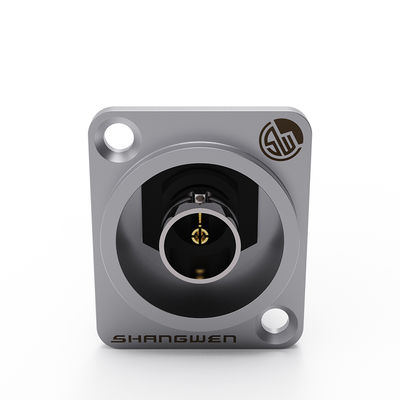

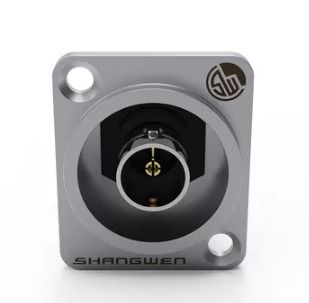

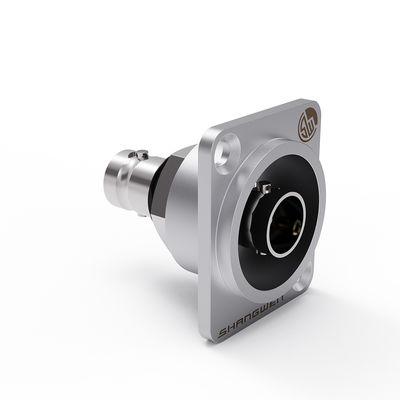

Lightweight Industrial BNC Video Connector Female BNC Panel Mount Chassis Socket Adapter Welding Free Industrial BNC Connector

สถานที่กำเนิด กวางตุ้งจีน
ชื่อแบรนด์ SHANGWEN
หมายเลขรุ่น SWJSH-BFF
จำนวนสั่งซื้อขั้นต่ำ 20 ชิ้น
ราคา $1.58-2.20 / piece

ติดต่อฉันเพื่อตัวอย่างฟรีและคูปอง

WhatsApp:0086 18588475571

วีแชท: 0086 18588475571

สกายเป้: sales10@aixton.com

หากคุณมีปัญหา เราให้ความช่วยเหลือออนไลน์ตลอด 24 ชั่วโมง

x
รายละเอียดสินค้า
แอปพลิเคชัน ทางอุตสาหกรรม เพศ ชาย/หญิง
พิมพ์ บีเอ็นซี อิเล็กทรอนิกส์อุตสาหกรรม เครื่องประดับ
เน้น

Chassis Socket Industrial BNC Connector

,

Welding Free Industrial BNC Connector

ฝากข้อความ
รายละเอียดสินค้า
Products Description
Industrial BNC Video Connector Electrical BNC Plug Connector Lightweight
BNC Video Connector is a high-performance, cost-effective BNC Panel Mount Connector Adapter. It is designed for use in radio frequency (RF) applications. The connector is constructed of nickel-plated brass and features a solder-type BNC micro coaxialcompression connector. The BNC Video Connector is rated for operating temperatures of -40°C to +85°C and has an impedance of 50Ohms. It has excellent electrical and mechanical properties, and is also suitable for use in storage temperatures of -40°C to+85°C. This BNC Video Connector is perfectly suited for use in high-frequency transmission applications such as video, audio, LAN,and CATV systems.
Lightweight Industrial BNC Video Connector Female BNC Panel Mount Chassis Socket Adapter Welding Free Industrial BNC Connector 0
Model : SWJSH-BFF
Product Name: BNC Video Connector

Connector A: BNC male plug connector

Connector B: BNC micro coaxial compression connector

Frequency Range: DC To 4GHz

Material: Metal

Durability: 500 Cycles

Lightweight Industrial BNC Video Connector Female BNC Panel Mount Chassis Socket Adapter Welding Free Industrial BNC Connector 2
Lightweight Industrial BNC Video Connector Female BNC Panel Mount Chassis Socket Adapter Welding Free Industrial BNC Connector 4
1.Electrical parameters
Rated Current
16A rms
Insulation Resistance
50V AC
Insulation Resistance
>5GΩ
Dielectric Strength
0.5 KVdc
2.Mechanical parameters
Service life
>2,000 Mating Cycles
Power line
Φ4-7.0mm
Insertion force
<25N
3.Size reference (unit /mm)
Lightweight Industrial BNC Video Connector Female BNC Panel Mount Chassis Socket Adapter Welding Free Industrial BNC Connector 6
Application area
Lightweight Industrial BNC Video Connector Female BNC Panel Mount Chassis Socket Adapter Welding Free Industrial BNC Connector 8
Company Information
Lightweight Industrial BNC Video Connector Female BNC Panel Mount Chassis Socket Adapter Welding Free Industrial BNC Connector 10
Patent & Certification
Lightweight Industrial BNC Video Connector Female BNC Panel Mount Chassis Socket Adapter Welding Free Industrial BNC Connector 12
Exhibition activities
Lightweight Industrial BNC Video Connector Female BNC Panel Mount Chassis Socket Adapter Welding Free Industrial BNC Connector 14
Packaging reference
Lightweight Industrial BNC Video Connector Female BNC Panel Mount Chassis Socket Adapter Welding Free Industrial BNC Connector 16
Payment and logistics
Lightweight Industrial BNC Video Connector Female BNC Panel Mount Chassis Socket Adapter Welding Free Industrial BNC Connector 18
FAQ
Lightweight Industrial BNC Video Connector Female BNC Panel Mount Chassis Socket Adapter Welding Free Industrial BNC Connector 20
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
